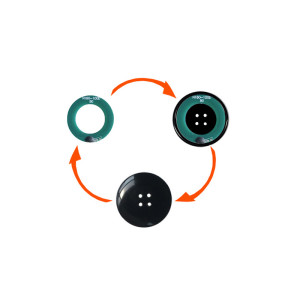

Electronic label Electronic Laundry label PPS Label NXP216 chip 20MM
- Model
- Diameter 20 PPS label
Item specifics
- category
- PPS tag
- support
- DC-NFC tag manufacturer
- size
- Diameter 20Mm
- thickness
- 3mm
- standard
- 14443a
- chip
- NTAG216
- frequency
- 13.56MHZ
- temperature resistance
- Minus 25 to180 degrees
- operating temperature
- Minus 30 to 85 degrees
- reading distance
- About 2-5cm（Depends on the card reader and the ant
- Authentication
- ROSH ,REACH CE
Review
Description
20MM PPS TAG Description
High Quality 20MM PPS TAG
● Application industry:Identification anti-counterfeiting, logistics tracking, biological identification, industrial automation, location patrol, laundry, unique identification of automobile engines, chemical raw materials and power identification, underground pipelines and fields that need to be used in harsh environments such as high temperature wear resistance and corrosion resistance.
●characteristic：
| NTAG 216 chip, 20mm PPS TAG, high-temperature resistant NFC |
20MM PPS TAG Specification
|
Features
|
Contactless transmission of data and supply energy
|
||
|
Operating frequency
|
13.56 MHz
|
||
|
Data transfer
|
106 kbit/s
|
||
|
Data integrity
|
16-bit CRC, parity, bit coding, bit counting
|
||
7-byte serial number (cascade level 2 according to ISO/IEC 14443-3).UID ASCII mirror for automatic serialization of NDEF messages..Automatic NFC counter triggered at a reading command.NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message.ECC-based originality signatureFast read commandTrue anti-collision | |||
180, 540 or 924 bytes organized in 45, 135 or 231 pages with 4 bytes per page. 144, 504 or 888 bytes freely available user Read/Write area (36, 126 or 222 pages). 4 bytes initialized capability container with one-time programmable access bits. Field programmable read-only locking function per page for the first 16 pages. Field programmable read-only locking function above the first 16 pages per double page for NTAG 213 or per 16 pages for NTAG 215 and NTAG 216. Configurable password protection with an optional limit of unsuccessful attempts. Anti-tearing support for capability container (CC) and lock bits. ECC supported originality check. Data retention time of 10 years. Write endurance 100,000 cycles. | |||
20MM PPS TAG Applications
20MM PPS TAG FAQ
1. How can I get the 20Mm PPS TAG Description Small price?
Please Send your inquiry Details or add our online tool then we can provide you with a quotation for the first time.
2. Can you offer free samples?
Yes, usually we can offer you free samples
A: For stock samples, we can send you free samples for your test, you pay for the shipping cost.
B: For customized samples, we will charge the reasonable production cost and try to refund you after order confirmed
3. What is your lead time?
Usually, our lead time is 1-7 days for samples and 7-20 days for mass production.
4. What's your payment method ?
Our payment method are T/T, Ali Trade Assurance for mass production order; Paypal.
5. How can I Choose the chip?
Check above chips lists or just email with us of the application, we will give the best suggestions.
