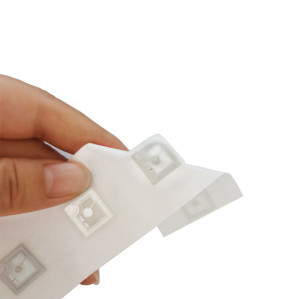

RFID 13.56MHz Security Smart Tag N213 TT Chip NFC Fragile Anti-transfer Electronic Label
RFID 13.56MHz Security Smart Tag N213 TT Chip NFC Fragile Anti-transfer Electronic Label
RFID 13.56MHz Security Smart Tag N213 TT Chip NFC Fragile Anti-transfer Electronic Label
RFID 13.56MHz Security Smart Tag N213 TT Chip NFC Fragile Anti-transfer Electronic Label
Model
NFC Fragile Anti-transfer Label

Item specifics

category
NFC Fragile Anti-transfer Label
support
DC-NFC tag manufacturer
size
24*49mm
thickness
0.2mm
standard
14443A
chip
213TT
frequency
13.56MHZ
operating temperature
Minus 40 to 70 degrees
reading distance
About 1-10mm

Review

Description

24*49MM NFC Fragile Anti-transfer Label Description
 6Mm FPC NFC TAG
High Quality 24*49MM NFC Fragile Anti-transfer Label


Application industry:cosmetics / jewelry/Wine anti-counterfeiting, asset management


●characteristic:213TT chip,24*49MM NFC Fragile Anti-transfer Label,high-temperature resistant NFC



24*49MM NFC Fragile Anti-transfer Label Specification
Features
Contactless transmission of data and supply energy
Operating frequency
13.56 MHz
Data transfer
106 kbit/s
Data integrity
16-bit CRC,Parity check, bit coding, bit counting
7 byte serial number (according to ISO/IEC 14443-3 cascade 2)UID ASCII image for automatically serializing NDEF messages
The NFC counter is triggered automatically when a read command is received
An ASCII image of an NFC counter automatically adds an NFC counter value to an NDEF message
The label tamper proof function can detect whether the label tamper line is opened after startup
ASCII image of a label tamper proof message that copies the customized label tamper proof information to an NDEF message when a tamper event is detected
Based on the original signature of ECC, it can provide customization and permanent locking function
Quick read command
True anti-interference
50 pF Input capacitor
184 bytes, organized into 46 pages of 4 bytes each
144 bytes User free read/write area (36 pages)
4-byte initialization function container with one-time programming access bits
The first 16 pages feature a field-programmable read-only lock on each page
Every two pages after the first 16 pages have field programmable read-only lockout
Password protection can be configured, and the limit of failed attempts is optional
Function container (CC) and lock bits support anti-modification function
Preset original signature based on ECC, can provide customization and permanent locking function
Tag tamper-proof message
Data is retained for 10 years
Write operation tolerance is 100.000 cycles
24*49MM NFC Fragile Anti-transfer Label
 Applications
10Mm NFC FPC Small Tag Application
24*49MM NFC Fragile Anti-transfer Label FAQ
1. How can I get the 24*49Mm NFC Fragile Anti-transfer Label Description Small price?
Please Send your inquiry Details or add our online tool then we can provide you with a quotation for the first time.

2. Can you   offer free samples?
Yes, usually we can offer you free samples
A: For stock samples, we can send you free samples for your test, you pay for the shipping cost.
B: For customized samples, we will charge the reasonable production cost and try to refund you after order confirmed

3. What is your lead time?
Usually, our lead time is 1-7 days for samples and 7-20 days for mass production.

4.  What's your payment method  ?
Our payment method are T/T, Ali Trade Assurance for mass production order; Paypal.

5. How can I Choose the chip?
Check above chips lists or just email with us of the application, we will give the best suggestions.
