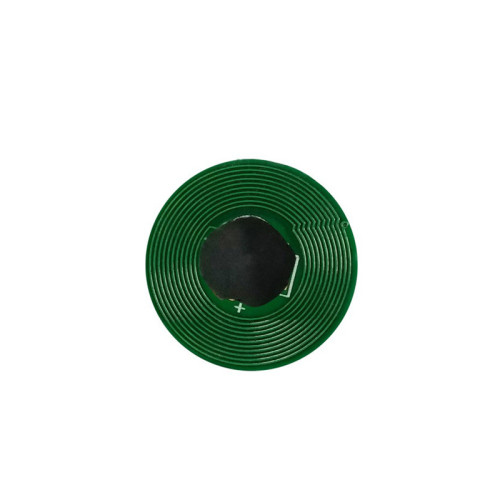

20 diameter long-distance RFID public transportation NFC tag MIFARE Classic EV1/S50 chip high-temperature resistant PCB tag
20 diameter long-distance RFID public transportation NFC tag MIFARE Classic EV1/S50 chip high-temperature resistant PCB tag
20 diameter long-distance RFID public transportation NFC tag MIFARE Classic EV1/S50 chip high-temperature resistant PCB tag
20 diameter long-distance RFID public transportation NFC tag MIFARE Classic EV1/S50 chip high-temperature resistant PCB tag
Model
Diameter 20Mm PCB NFC tag

Item specifics

category
PCB NFC tag
support
DC-NFC tag manufacturer
size
Diameter 20Mm
thickness
0.08mm
standard
14443a
chip
MIFARE Classic EV1 /S50
frequency
13.56MHZ
temperature resistance
Instantly 260 ℃, 200 ℃ for 3-5 minutes
operating temperature
Minus 40 to 85 degrees
reading distance
About 1-30mm

Review

Description

Diameter 20MM PCB NFC TAG Description
 6Mm FPC NFC TAG
High Quality Diameter 20MM PCB NFC TAG


Application industry:Public transportation, access control, electronic toll collection, parking, campus card



●characteristic:
 MIFARE Classic EV1 /S50 chip, Diameter 20mm NFC, high-temperature resistant
NFC


Diameter 20MM PCB NFC TAG Specification
Features
Contactless transmission of data and supply energy
Operating frequency
13.56 MHz
Data transfer
106 kbit/s
Data integrity
16-bit CRC data integrity check, parity check, bit coding, bit count
Contactless transmission of data and energy supplyWorking frequency is 13.56 MHzThe data transmission speed is 106 kbit/s4-byte UIDThree way bidirectional authentication (ISO/IEC DIS 9798-2)Set two separate keys for each sector, and support multiple applications through key hierarchy technology
16 bit CRC data integrity check, parity check, bit encoding, bit counting
True anti-collision characteristics
1 kB, divided into 16 sectors, each sector is divided into 4 blocks (each block is composed of 16 bytes)
Users can define access conditions for each memory block
Data retention time is 10 years
Can write 200000 times
Diameter 20MM PCB TAG Applications
10Mm NFC FPC Small Tag Application
Diameter 20MM PCB NFC TAG FAQ
1. How can I get the Diameter 20MM PCB NFC TAG Description Small price?
Please Send your inquiry Details or add our online tool then we can provide you with a quotation for the first time.

2. Can you   offer free samples?
Yes, usually we can offer you free samples
A: For stock samples, we can send you free samples for your test, you pay for the shipping cost.
B: For customized samples, we will charge the reasonable production cost and try to refund you after order confirmed

3. What is your lead time?
Usually, our lead time is 1-7 days for samples and 7-20 days for mass production.

4.  What's your payment method  ?
Our payment method are T/T, Ali Trade Assurance for mass production order; Paypal.

5. How can I Choose the chip?
Check above chips lists or just email with us of the application, we will give the best suggestions.
